CiFDT

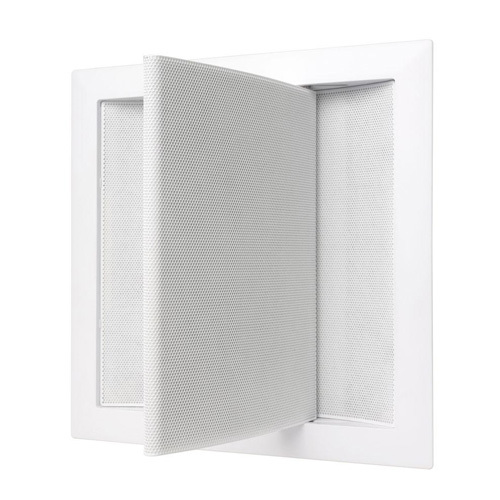

A motorised dipole surround sound speaker, the CiFDT combines genuinely unobtrusive installation with the ability to create stunningly realistic background effects. Lying flush with the wall when not in use, a sophisticated flat panel driver moves into position when switched on, radiating higher frequencies equally front and back to diffuse the sound evenly throughout the room, while low frequency effects are being faithfully reproduced by the integral 130mm (5in.) bass driver. Acoustically, the two technologies complement each other perfectly to generate a richly detailed ambient soundfield; aesthetically, the appearance couldn’t be more discreet. As an architectural audio solution, it’s imaginative, impeccably engineered and incredibly satisfying. CiFDT Features and Benefits Purpose built for flush mounting into walls, the CiFDT combines 100W power handling and 86dB sensitivity. A 110mm x 180mm (4.5in. x 7in.) Flat panel with a 130mm (5in.) bass driver. Will require an additional 12 volt supply. The bezel and grille can be painted or covered by fabric to match the interior décor. Applications The CiFDT is best suited for high quality music and home theatre applications where hi-fi performance is required, such as: |
|
Model | CiFDT |
Nominal Impedance | 8Ω |
Sensitivity (2.83V @ 1m) | 86dB |
Frequency Response +/-6dB With back can/rear enclosure | 80 - 20 kHz |
Crossover Frequency | 180Hz |
Drive Units (LF / MF / HF) | 130mm / 180 x 110 mm / - |
Recommended Amplifier Power | 20-100W |
Features | Motirized in-wall Dipole |
Product External Dimensions (Height / Width / Depth) | 248mm (9.76in.) / 248mm (9.76in.) / 104mm (4.09in) |
Cut-out Dimension (Height / Width) | 233mm (9.17in.) / 220mm (8.66in.) |
Mounting Depth from Surface (Product only / With back can) |
